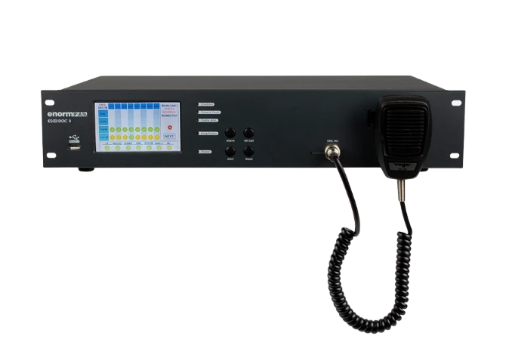

EnormPA - ESCO DOC16

16 Channel Emergency Voice Alarm Control Unit, TCP/IP, RTO/OPUS CODEC Ethernet Network Based Public Address and Voice Alarm System Control Unit, EN54-16 certified

DOC 16 is the EN54-16 certified main control unit that manages the ESCO - Network Based Audio and Voice Alarm System and can display all kinds of fault information in the system. This Ethernet-based system, used in all emergency missions; enables high-security operations such as switch-over to redundant power amplifier, fault detection and indication, real-time speaker line impedance monitoring, and open/short circuit detection. It works over both LAN and WAN.

The main purpose of the system is to eliminate misinformation during emergencies such as fire, earthquake, flood. It is aimed to ensure that people in different regions are evacuated in the most accurate and fastest way. In addition, it makes the background music broadcasts and advanced voice alarm functions of the zones it is connected over the same system.

Thanks to the state-of-the-art "multi-connectivity" application, there are no limits in terms of communication and flexibility. All inputs and outputs are fully programmable and allow scheduled announcements to be transmitted automatically to selected zones. From the web interface all zones can be easily monitored from the main screen. Also IP addresses of DOCs and MA5s(announcement console) are automatically done with a single click.

The DOC16 system can be easily integrated. With its user-friendly web-based interface, device setup and settings can be made easily. It is a powerful yet cost-effective public address, voice alarm and music system for any facility. Thanks to its plug-and-play philosophy, it significantly reduces installation, maintenance and operating costs.

  • EN54-16 certified

  • Main & backup power supply

  • Power source protection

  • Loudspeaker line fault detection

  • Monitoring and tracking function

  • Self-test function

  • Power amplifier management

  • Emergency audible alarm function

  • Public address function

  • Ability to stream MP3 files

  • Configuration via interface

  • Monitoring via interface

  • Simple settings and cross checking via interface

  • Automatic IP matching

  • Indicates the status with LED lights on the front panel

  • Contains 16 defined A-B zones

  • The system can be expanded to 64 zones with DOC-S

  • Speakers can be connected in a loop

  • Includes DSP module

  • Uses RS485 protocol for external communication

  • Main power supply is protected with fuse

  • Houses a built-in speaker for zone control

  • Max. 3 source files can be played over the network or from internal files

  • Zone and resource names can be defined via the interface

  • Supports broadcast via scheduled tasks

  • Traceable and recordable logs are kept within the system.

  • Except for emergencies, it supports keeping announcements and messages in memory and broadcasting them according to the given priority
